Udon Node Graph

Learn how to use the Udon Node Graph to create Udon programs

Interface

The Udon Node Graph is the default interface for creation of Udon programs. This section goes over how to use it. If you want to dive right into examples, take a look at the Udon Example Scene.

You can open up the Udon Graph window using the Menu Item under VRChatSDK > Udon Graph, or by clicking the Open Graph button on an UdonBehaviour Component.

393393

The Udon Window

🚧

Minimap

The minimap has been removed! Now that you can search your graph by Group Name and Event Name, we felt the minimap was more distracting than helpful.

If you open the window through the Menu command, you'll see the welcome screen, which has a changelog and some settings.

Multiple Graphs can be opened simultaneously, and you can switch between them using the tabs at the top of the Graph Window.

You can close tabs, by clicking the X in the corner of the tab you want to close. Graph Tabs are not "real" tabs, and simply reopen each tab as you select them. This means switching tabs takes as long as opening Graphs.

Flow

The Flow of your graph defines which nodes will run, and the order in which they'll do it.

830830

A simple graph with a flow that branches to two different places

The triangles in the picture above are the Flow ports, and they trigger in order from left to right, following the noodles that connect them. To understand what is happening in Udon graphs and to make your own, follow the flow.

There is a "Highlight flow" toggle on the topbar, which, when enabled, will highlight the nodes connected via the flow edges, allowing you to quickly see how does the program arrive to the particular node.

805805

If the node doesn't have any flow connections, then nothing will happen.

In the graph above:

  1. The Start event triggers when the world loads
  2. The Branch triggers next. It checks the value of its checkbox and then triggers either the True or False path.
  3. If the value is True, then we trigger the top node, which sends a Custom Event called "Hello".
  4. Otherwise, we will send a Custom Event called "Goodbye"

It's ok if you don't know what Sending a Custom Event means yet. Learning to read the flow of a graph is the first step to understanding what they do.

Creating Nodes

Nodes are the boxes that represent the methods you can trigger. Building a graph consists of creating and connecting nodes together to create a program.

There are several ways to create nodes:

Hotkeys

Press and hold one of the following keys, then click anywhere on the graph to create the corresponding node:

  • 1 : float
  • 2 : Vector2
  • 3 : Vector3
  • 4 : Vector4
  • + : float addition
  • - : float subtraction
  • = - float equality comparison
  • b: Branch
  • shift+b : Block

Other Hotkeys:

  • Press and hold "C", then click on a constant to convert it into a variable.
  • Shift+A aligns selected nodes
  • Press and hold Ctrl+G for quick grouping
  • L+Click logs the value of the selected node

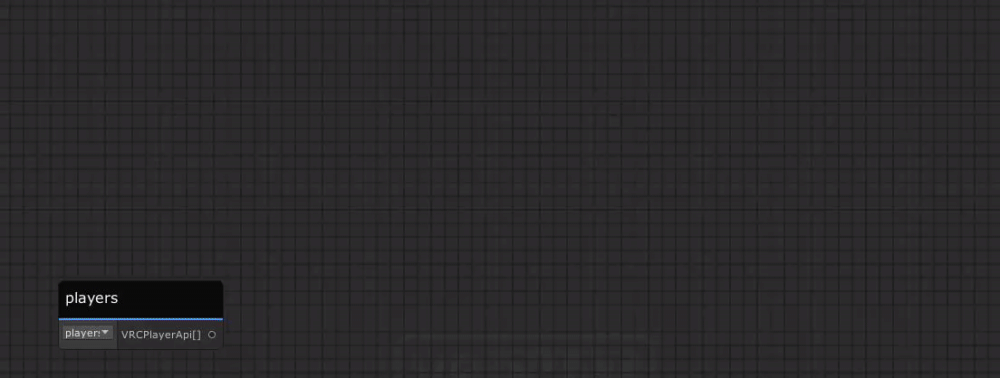

  • Press and hold "Shift+F", then click on a node that outputs an array type, to generate a foreach loop automatically
    Many of these features are also available in the right-click menus for their respective nodes.
10001000

Making for loops the easy way!

Drag and Drop for GameObjects and Components

If you want to add interactivity to a GameObject or Component, you can drag and drop them from your hierarchy to the graph. For example, you can drag and drop a Light component by grabbing dragging from the 'Light' title onto the graph.

867867

Easy way to get a reference to a Light component so you can play with it.

Creating nodes via Drag and Drop this way creates Variables that are tied to your GameObject or Component, so you'll see a new variable appear in the Variables window, and a node which is actually a "Get Variable" node which is automatically set up to get your new Component.

Drag and Drop for Variables

You can create variables of any type by pressing the + button in the Variables pane of the Graph Sidebar. Then you can drag and drop the variable name onto the graph to create a "Get Variable" node, hold the Ctrl key while dragging to make a "Set Variable" node, or hold the Alt key to make an "On Variable Changed" node.

Searching for Nodes

Press the Spacebar to open up Quick Search, then type in the first few letters of the class you want to interact with.

747747

If we want to get the name of a GameObject, we type "ga", which highlights GameObject, then press enter to narrow our focus to GameObject. Then we type "name" which focuses further to get name / set name. Press enter one last time to create the "get name" node.

This method of searching works best if you know Unity's basic classes and object types. There are other ways of searching, see: Searching for nodes

Compiling the Graph

The graph automatically compiles in the background at regular variables. When this happens, you'll see a flash in the upper-right corner of your graph, and the Status box will turn green if things went well, or red if there's an issue. In either case, you can click on the Status box to see the Assembly Code that was generated, or the errors if there was a problem.

304304

The status box shows 'OK' and we can see the Variables declared at the top of this Assembly.

Running the Graph

There are two ways to run the graphs in your scene before you upload them to VRChat.

Running In-Editor

You can use Unity's Play Button to run your scene directly in the editor to test out some graphs. This will work for some simple methods and logic, but the following items won't work as expected:

  • Synced Variables & Networked Events
  • The VRCPlayerAPI object - using stations, triggering Interact events, anything involving Avatars

Running Build & Test

Use the VRChat SDK Window to do Local Testing. This takes slightly longer as it bundles your content into an offline world and launches the actual VRChat client to give you an Avatar that can Interact with objects and VRCPlayerAPI requests.

523523

The simplest way to test Sync features is to launch 2 local clients.

To test Synced variables and NetworkEvents, you'll need two clients - you can use the 'Number of Clients' field to launch up to 8 local clients that will launch in a private test world. They will all have the same DisplayName, but they'll otherwise be recognized as separate players so you can test out your interactions.

❗️

Set Your Local Client Path

If 'Force Non-VR' doesn't work for you, then switch to the 'Settings' tab of the VRChat SDK Window and set your VRChat Client Path to point at your actual VRChat installation.

520520

Uploading Your World

You will be able to Build & Test as soon as you make a VRChat Account. In order to publish a world so others can visit, you need to spend some time in VRChat - visit worlds, make some friends and get inspired!


What’s Next

Read about all the Elements of the Udon graph
